Product List

Your Present Position: Home - Product List - Wood chipper

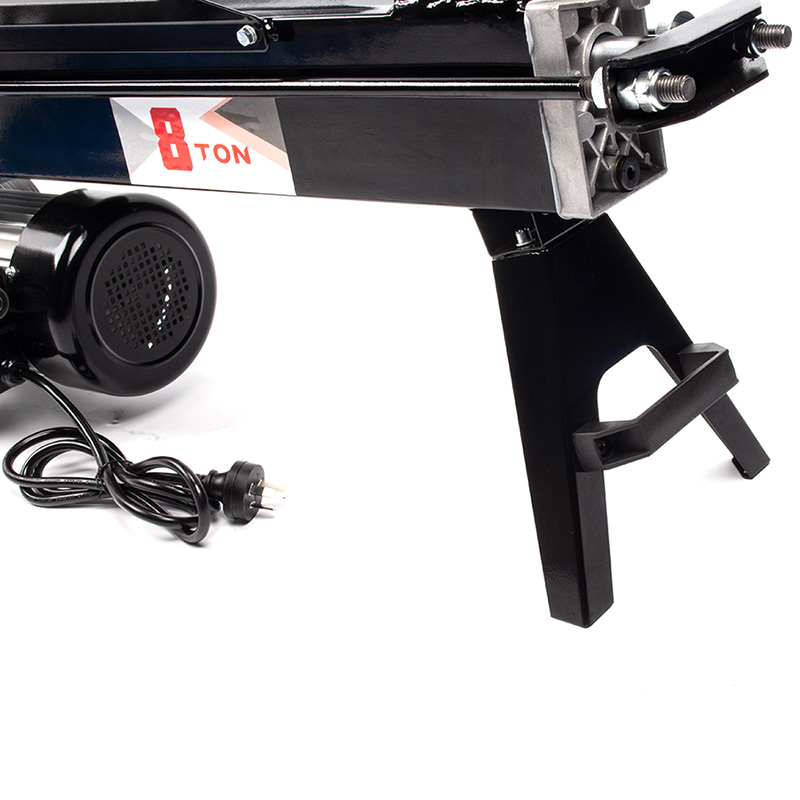

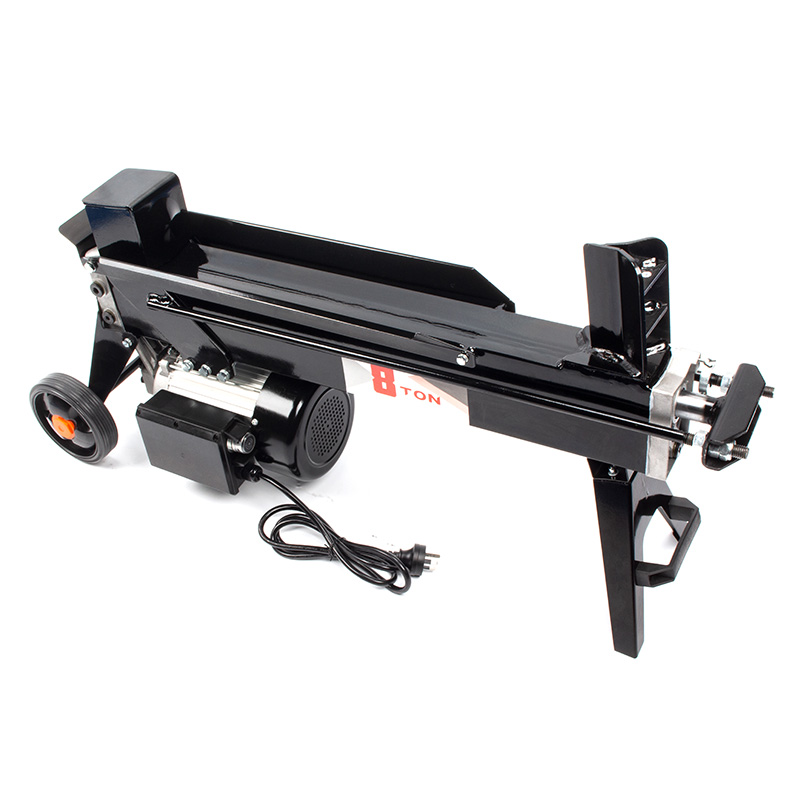

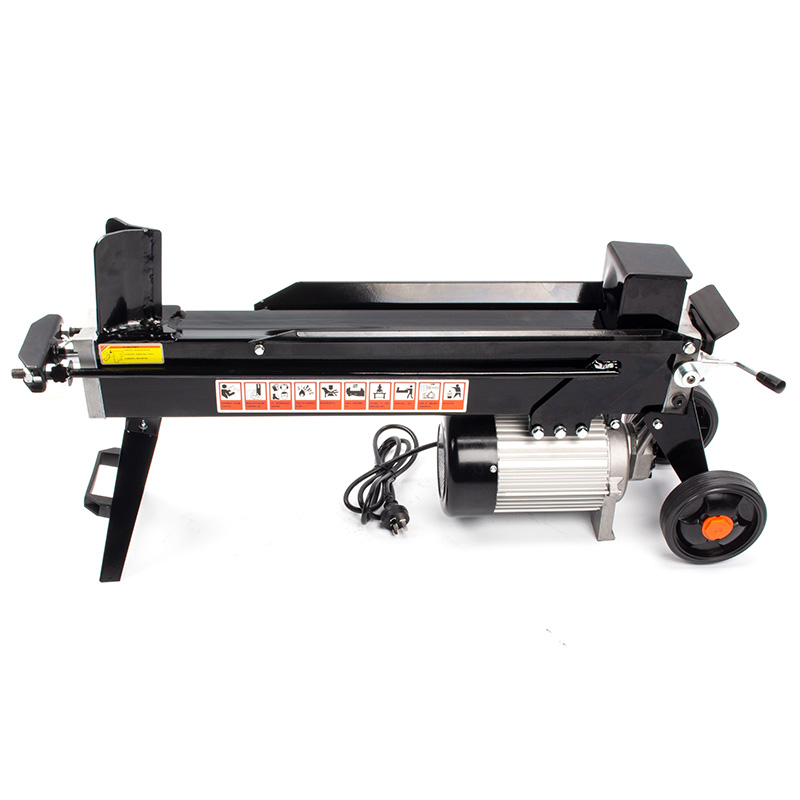

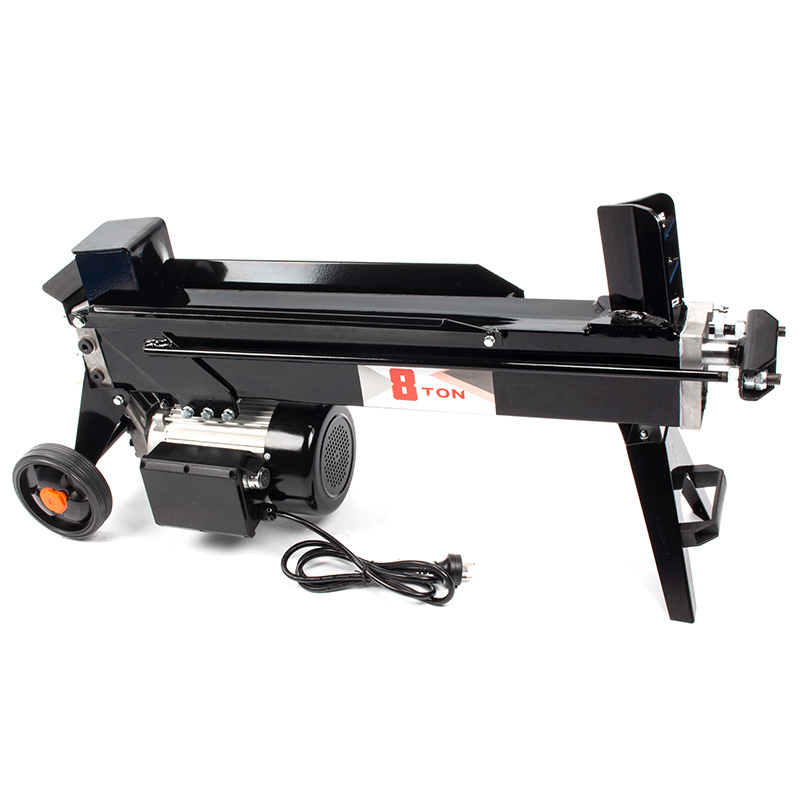

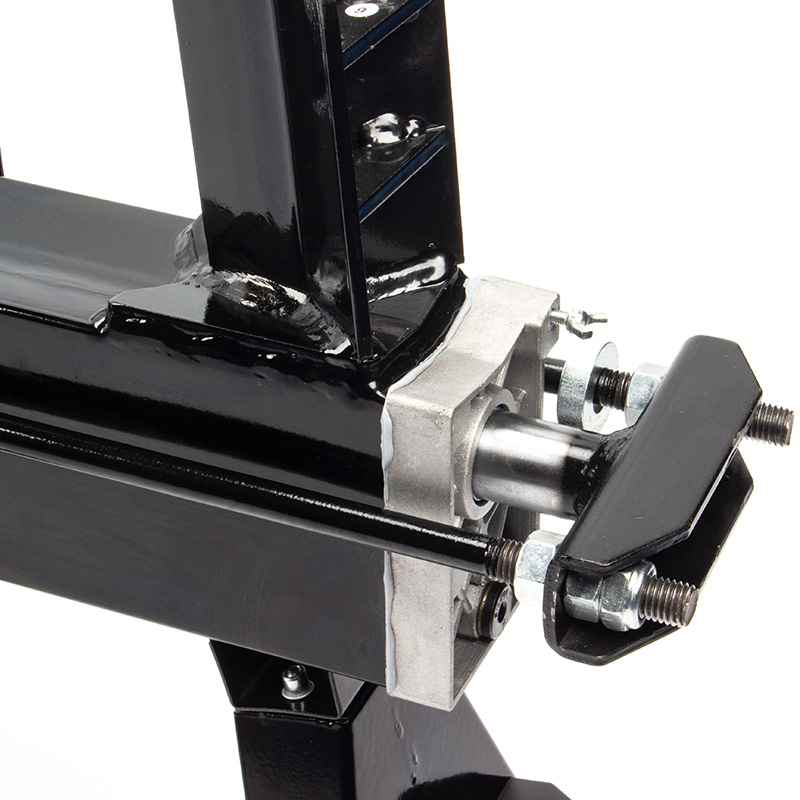

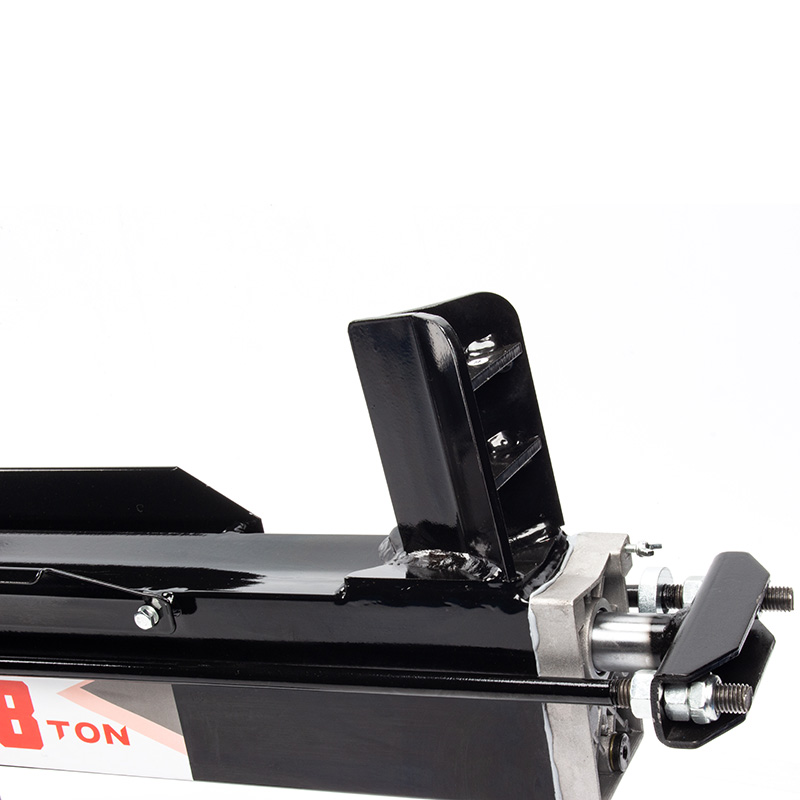

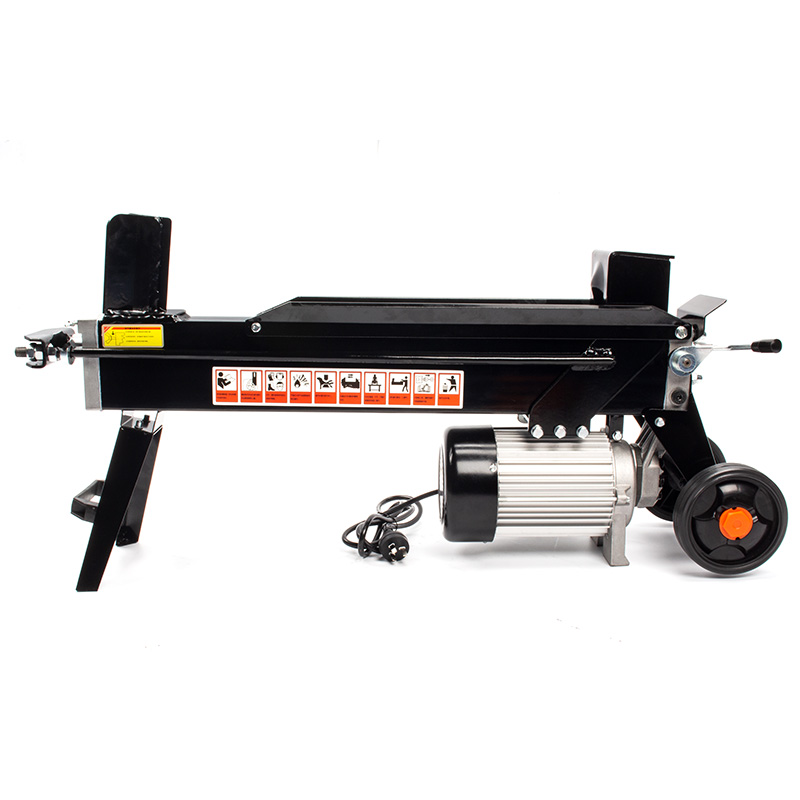

NAME: WP-8

Parameter type	Parameter	Parameter type	Parameter
Production dimension (L/W/H *inch)	39.7x11.2x19.1	Splitting stroke Length（inch）	22
Net weight (KG)	41.5	Splitting diameter φ（inch）	0.2-15.8
Packing size (inch)	40.1x11.8x21.2	Operating method	single-handed valve
Total weight of packing (KG)	53	Max. tonnage	8T
Horizontal/Vertical	Horizontal	Hydraulic oil No.	46#
Splitting method (optional)	2 ways/4 ways	Tires	5X1.5
Cycle	13S	Hydraulic oil	0.8GAL
Working voltage/Hz	115V/60Hz	Inner diameter of cylinder（inch）	2.2
Motor power	3HP	Piston diameter（inch）	1.2
Protection level	IP54	OEM	Acceptable

PREV： WP-8-8T
NEXT： WP-180-18
