Your Present Position: Home - Product List - Wood chipper

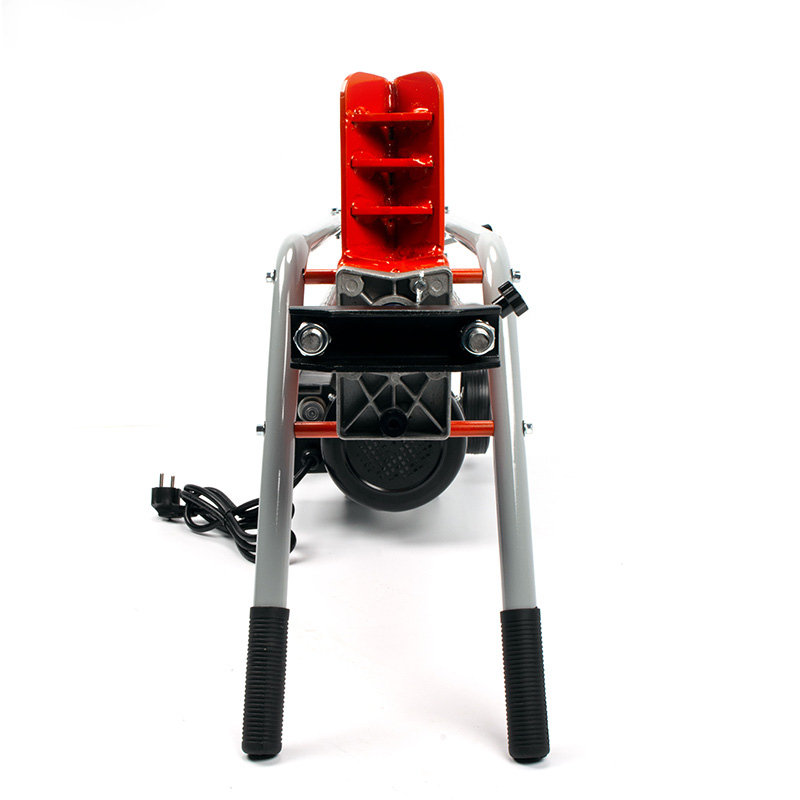

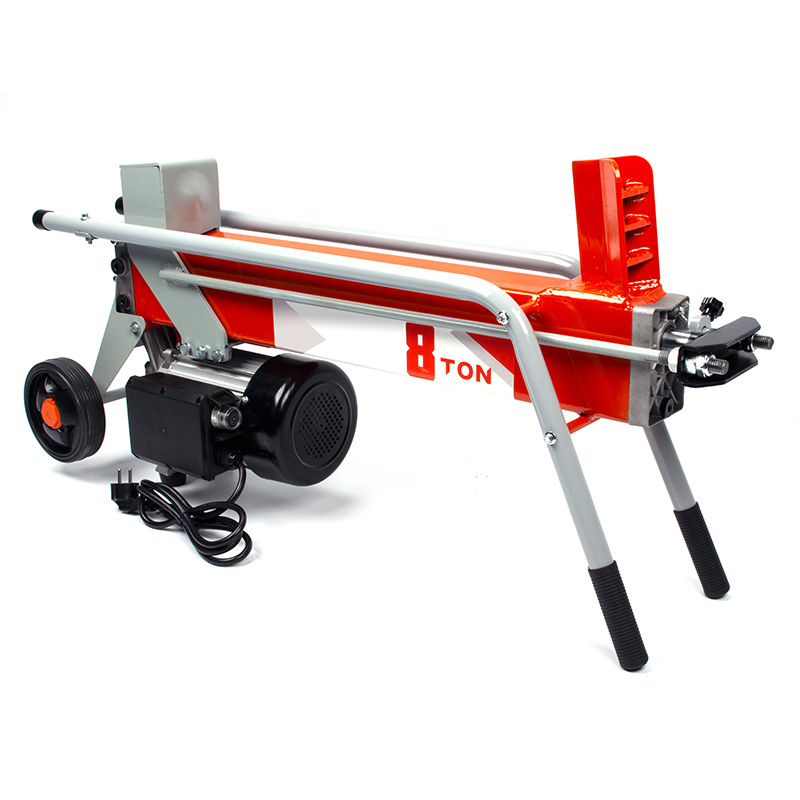

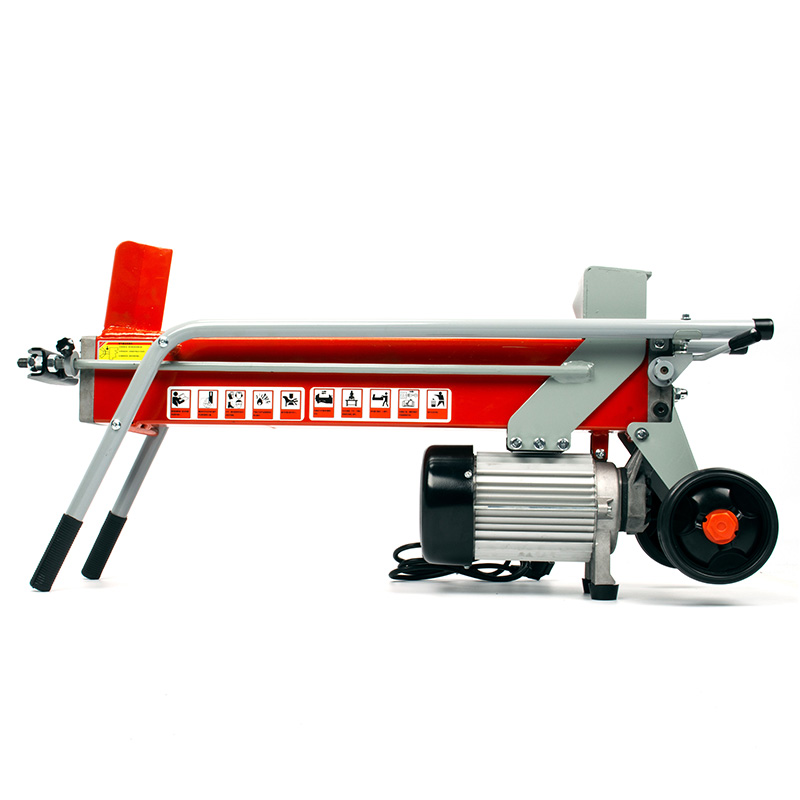

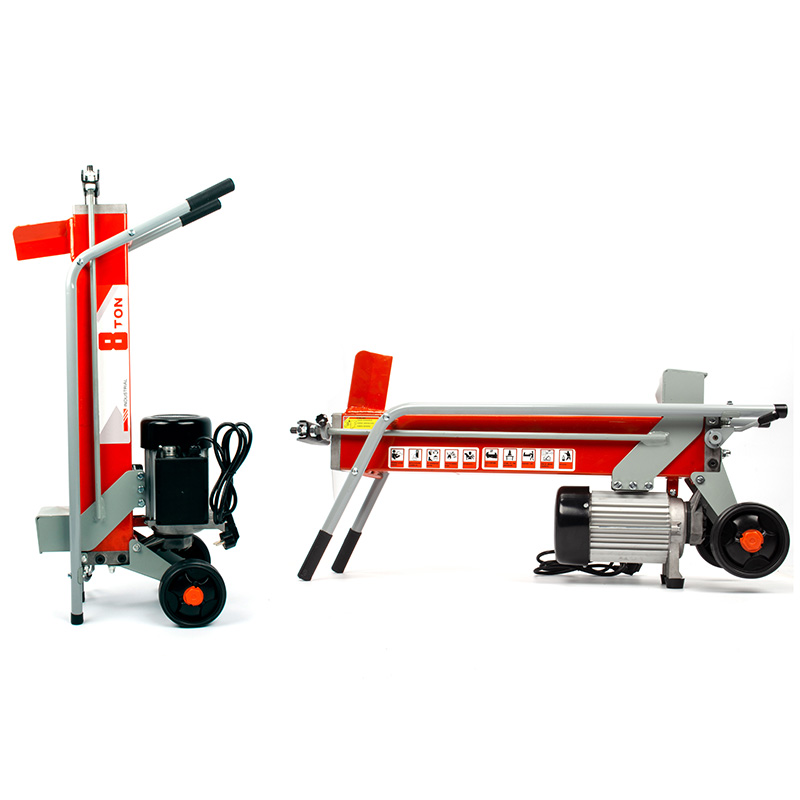

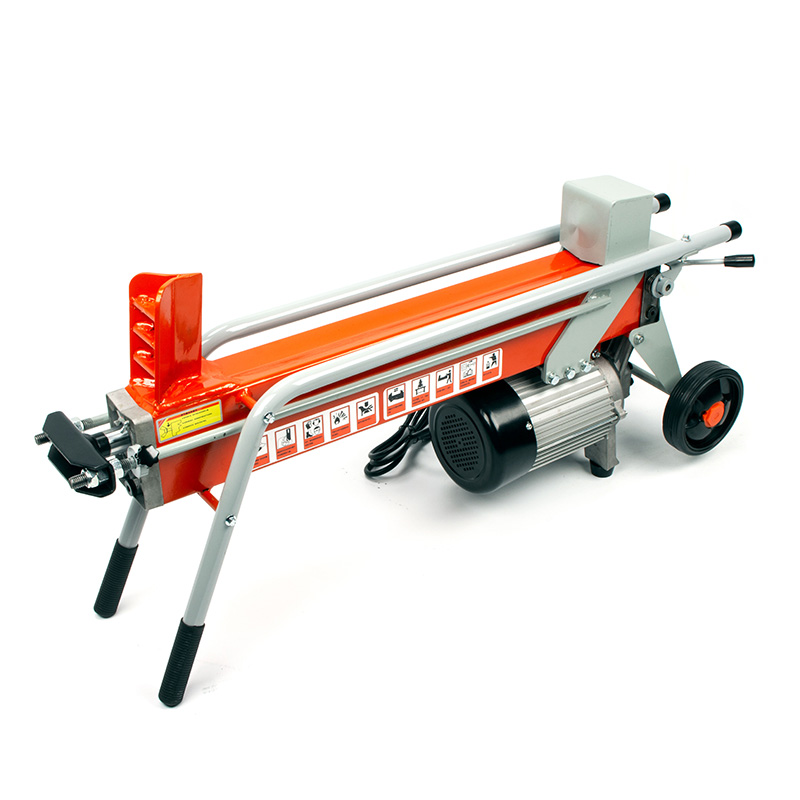

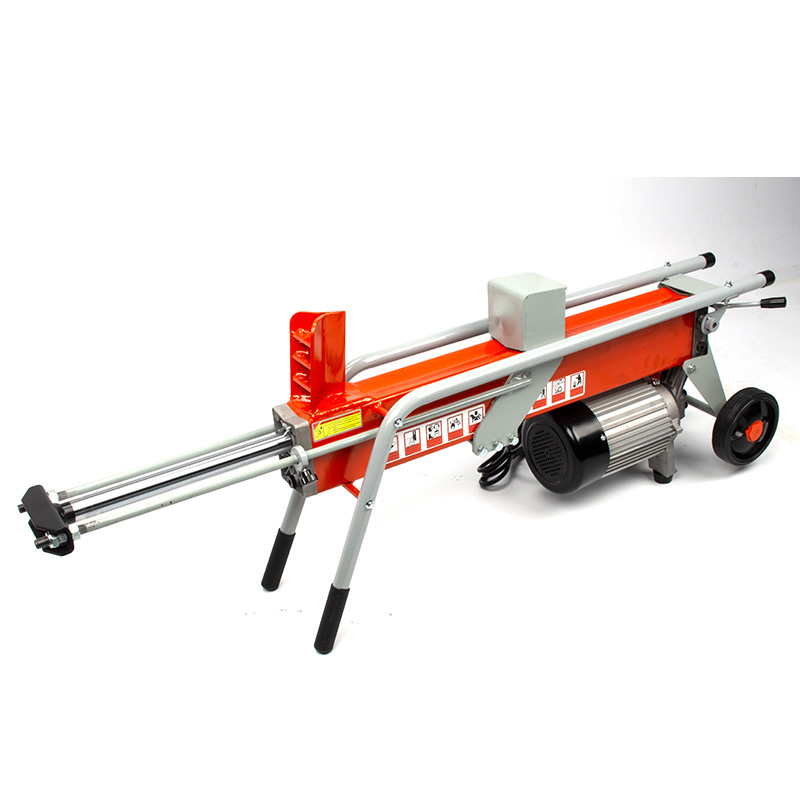

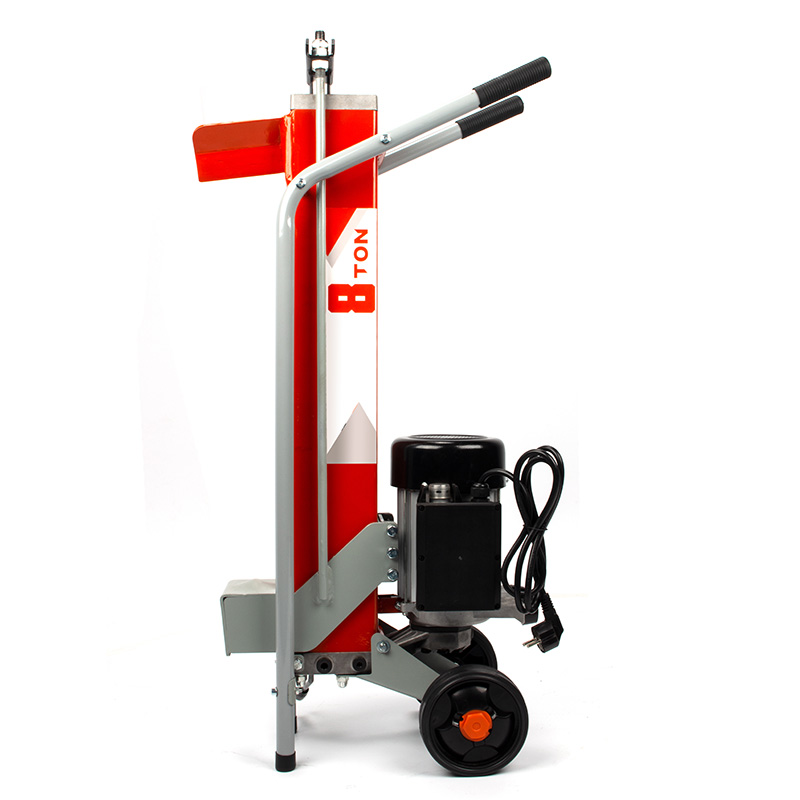

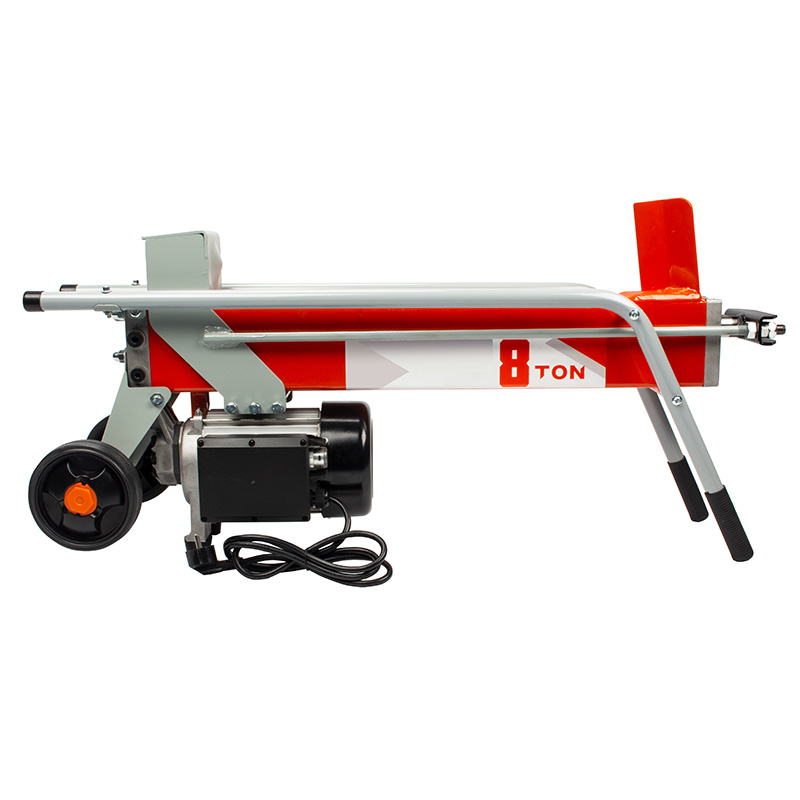

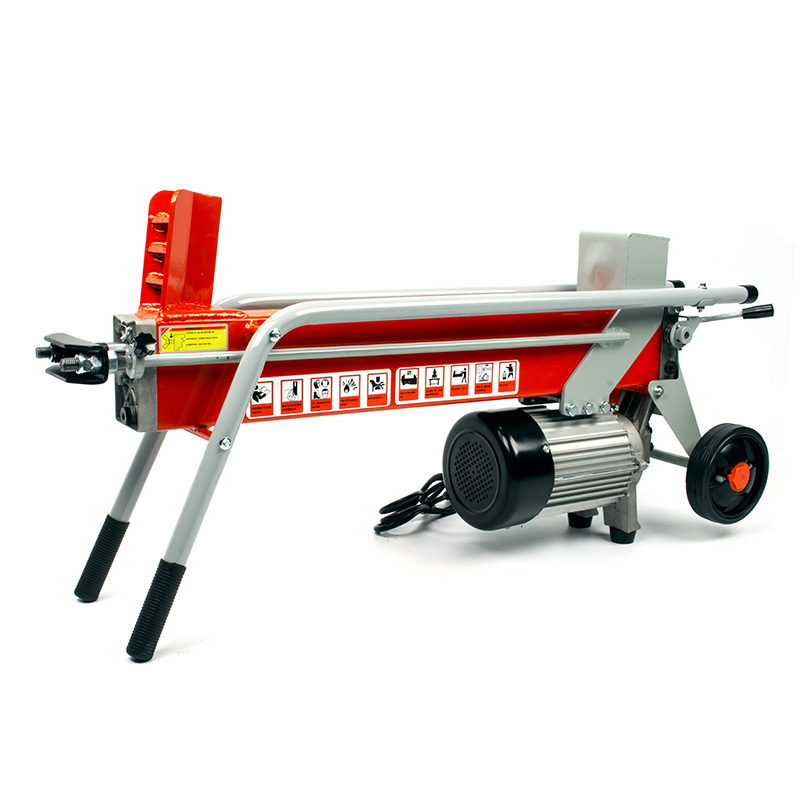

NAME:  WP-8-8T

Parameter type Parameter Parameter type Parameter
Production dimension (L/W/H *inch) 39.7x11.2x19.1 Splitting stroke Lengthinch 22
Net weight (KG) 41.5 Splitting diameter φinch 0.2-15.8
Packing size (inch) 40.1x11.8x21.2 Operating method single-handed valve
Total weight of packing (KG) 53 Max. tonnage 8T
 Horizontal/Vertical Horizontal  Hydraulic oil No. 46#
Splitting method (optional) 2 ways/4 ways Tires 5X1.5
Cycle 13S Hydraulic oil 0.8GAL
Working voltage/Hz 115V/60Hz Inner diameter of cylinderinch 2.2
Motor power 3HP Piston diameterinch 1.2
Protection level IP54 OEM Acceptable
